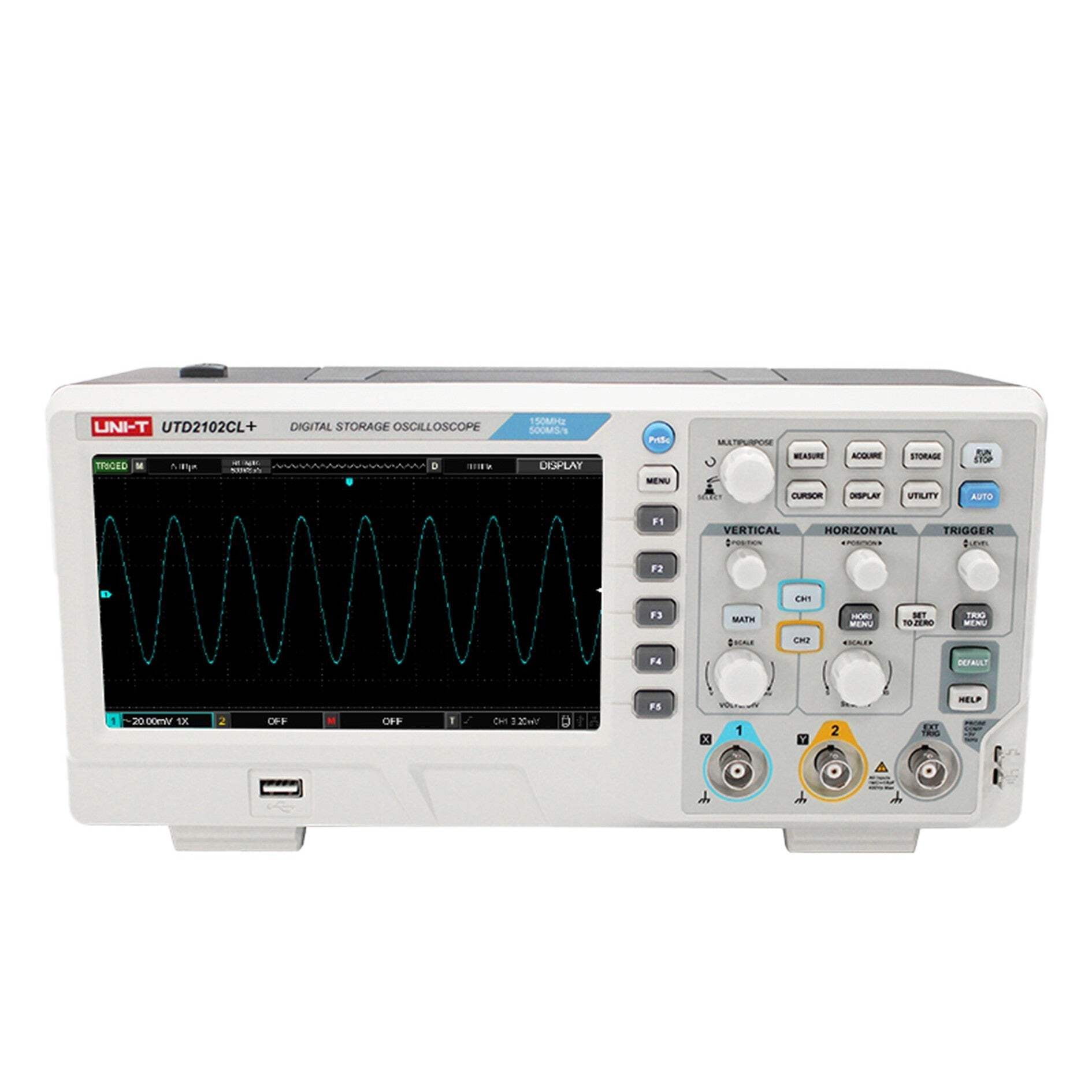

UNI-T UTD2102CL+ 100MHz 2CH DSO Digital Storage Oscilloscope

Introducing the UNI-T UTD2102CL+ Digital Storage Oscilloscope (DSO)UNI-T UTD2102CL+ Zoom feature<p>Are you an electrical engineer grappling with complex waveform analysis challenges? Meet the UNI-T UTD2102CL+ Digital Storage Oscilloscope (DSO), an instrument designed to empower you with the precision and versatility needed to overcome the most demanding electrical engineering tasks.</p>Key Specifications<ul><li><strong>Bandwidth:</strong> 100MHz</li><li><strong>Analog Channels:</strong> 2</li><li><strong>Real-Time Sample Rate:</strong> 500MSa/s</li><li><strong>Max. Memory Depth:</strong> 64kpts</li><li><strong>Waveform Capture Rate:</strong> 5,000wfms/s</li></ul>Empowering Features to Overcome Electrical Engineering Challenges:<ul><ul><li><strong>Math Function for Complex Calculations:</strong><ul><li><strong>Benefit:</strong> Simplify complex waveform analysis with the UNI-T UTD2102CL+ Digital Storage Oscilloscope.</li><li><strong>Challenge Overcome:</strong> Address intricate electrical signal calculations efficiently, essential for designing advanced circuits and systems.</li></ul></li><li><strong>Zoom Function for In-Depth Analysis:</strong><ul><li><strong>Benefit:</strong> Examine waveforms at various levels of detail.</li><li><strong>Challenge Overcome:</strong> Tackle intricate electrical signal analysis challenges by closely scrutinizing waveform characteristics, uncovering anomalies and fine-tuning system performance.</li></ul></li></ul></ul>UNI-T UTD2102CL+ XY feature<ul><ul><li><strong>XY Mode for Phase Difference Measurement:</strong><ul><li><strong>Benefit:</strong> Accurate phase difference measurement.</li><li><strong>Challenge Overcome:</strong> The easy to use XY Mode on the UNI-T UTD2102CL+ Digital Storage Oscilloscope will allow you to quickly resolve phase alignment issues in circuits, ensuring synchronization between signals, crucial for applications such as motor control systems.</li></ul></li><li><strong>AUTO Mode for Effortless Setup:</strong><ul><li><strong>Benefit:</strong> Streamline waveform display setup.</li><li><strong>Challenge Overcome:</strong> Using the UNI-T UTD2102CL+ Digital Storage Oscilloscope can simplify complex setups, reduce human error, and expedite waveform analysis, a boon for testing and troubleshooting.</li></ul></li><li><strong>FFT Spectral Analysis for Comprehensive Signal Insight:</strong><ul><li><strong>Benefit:</strong> Gain frequency domain insights from time domain signals.</li><li><strong>Challenge Overcome:</strong> Identify and address harmonic distortions, noise, and vibration issues in power systems and electronic components with the UNI-T UTD2102CL+ Digital Storage Oscilloscope.</li></ul></li><li><strong>Automatic Parameter Measurement for Precision Analysis:</strong><ul><li><strong>Benefit:</strong> Accurate measurement of signal parameters.</li><li><strong>Challenge Overcome:</strong> Obtain precise measurements with the UNI-T UTD2102CL+ Digital Storage Oscilloscope. It is essential when validating circuit designs and diagnosing signal anomalies in complex systems.</li></ul></li></ul></ul>UNI-T UTD2102CL+ Triggers feature<ul><li><strong>Variety of Triggers for Signal Capture Control:</strong><ul><li><strong>Benefit:</strong> Fine-tune signal capture for precise analysis.</li><li><strong>Challenge Overcome:</strong> Use your UNI-T UTD2102CL+ Digital Storage Oscilloscope to capture signals of interest while filtering out noise and unwanted data, crucial for accurate measurements.</li></ul></li><li><strong>Alternating Trigger for Frequency Differentiation:</strong><ul><li><strong>Benefit:</strong> Observe signals with varying frequencies.</li><li><strong>Challenge Overcome:</strong> Analyze signals from different sources simultaneously, with the UNI-T UTD2102CL+ Digital Storage Oscilloscope. An invaluable tool for diagnosing faults in multi-component systems.</li></ul></li></ul><p>The UNI-T UTD2102CL+ Digital Storage Oscilloscope (DSO) is your partner</p>

• UTD2000CL+/CL SERIES 50MHz to 100MHz BANDWIDTH 2 ANALOG CHANNELS 500MSa/s REAL-TIME SAMPLE RATE 64kpts MAX. MEMORY DEPTH 5,000wfms/s WAVEFORM CAPTURE RATE Math function Support addition, subtraction, multiplication, division, and waveform calculation functions
• ZOOM function You can observe the overall situation and details of the waveform
• XY mode (also called Lissajous graphics mode) Can measure the phase difference between two signals of the same frequency
• Brand new AUTO strategy The state after AUTO can be set
