JMT HLK-LD6003 60G Heart Rate Detection Radar Module 3M Non Contact Millimeter Wave Breathing + Heartbeat Sensor Support UART Serial Communication

JMT HLK-LD6003 60G Breathing + Heartbeat + Heart Rate Detection Module 3M Non Contact Millimeter Wave Sensor Support UART Serial Communication Product Introduction The LD6003 is a millimeter-wave human monitoring radar module operating in the 60GHz band. It can sense human presence in a defined area with extremely high sensitivity in a non-contact manner, and measure the breathing and heart rate of a human body. It is suitable for smart home, health management, smart healthcare & elderly care scenarios, enabling non-contact breathing and heart rate measurement. Product Features Operating frequency: 60GHz (58-64GHz) Transmit power: 12dBm Antenna beamwidth: ±60° (conical beam) Antenna gain: 4dBi Communication interface: UART Detection distance: 0.3-3m (best performance within 2m) Breathing rate accuracy: 92% (Typ.) Heart rate accuracy: 90% (Typ.) Power supply requirement: 3.3V (Typ.) Dimensions:31.5 x 25 x 8.7mm Operating temperature:-20°C～+85°C Storage temperature:-40°C~ +85°C

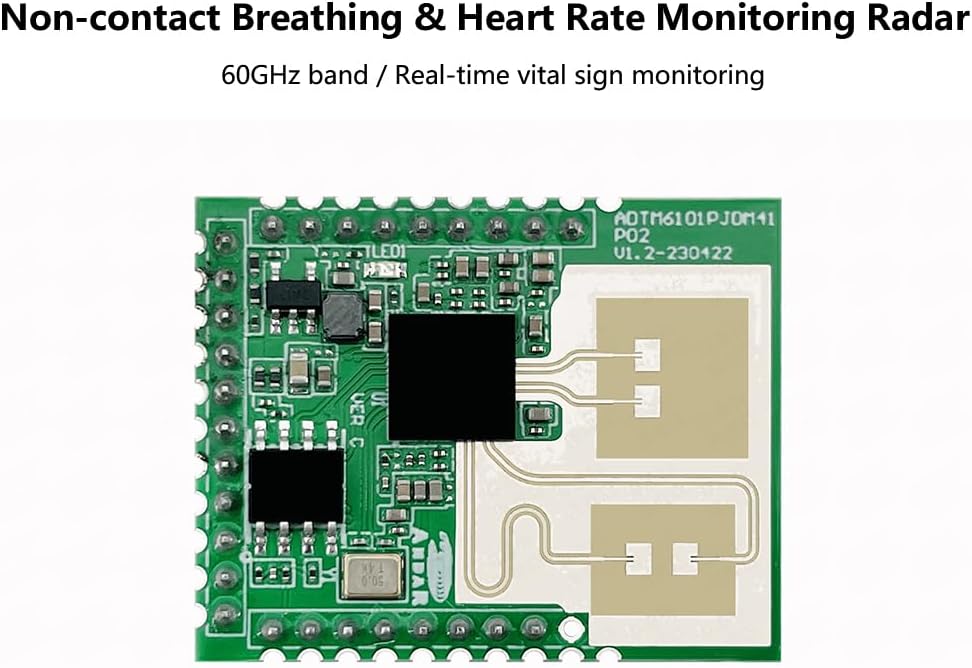

• The LD6003 is a millimeter-wave human monitoring radar module operating in the 60GHz band. It can sense human presence in a defined area with extremely high sensitivity in a non-contact manner, and measure the breathing and heart rate of a human body.
• It is suitable for smart home, health management, smart healthcare & elderly care scenarios, enabling non-contact breathing and heart rate measurement.
• Operating frequency: 60GHz (58-64GHz). Transmit power: 12dBm. Antenna beamwidth: ±60° (conical beam). Antenna gain: 4dBi.
• Communication interface: UART. Detection distance: 0.3-3m (best performance within 2m). Breathing rate accuracy: 92% (Typ.). Heart rate accuracy: 90% (Typ.).

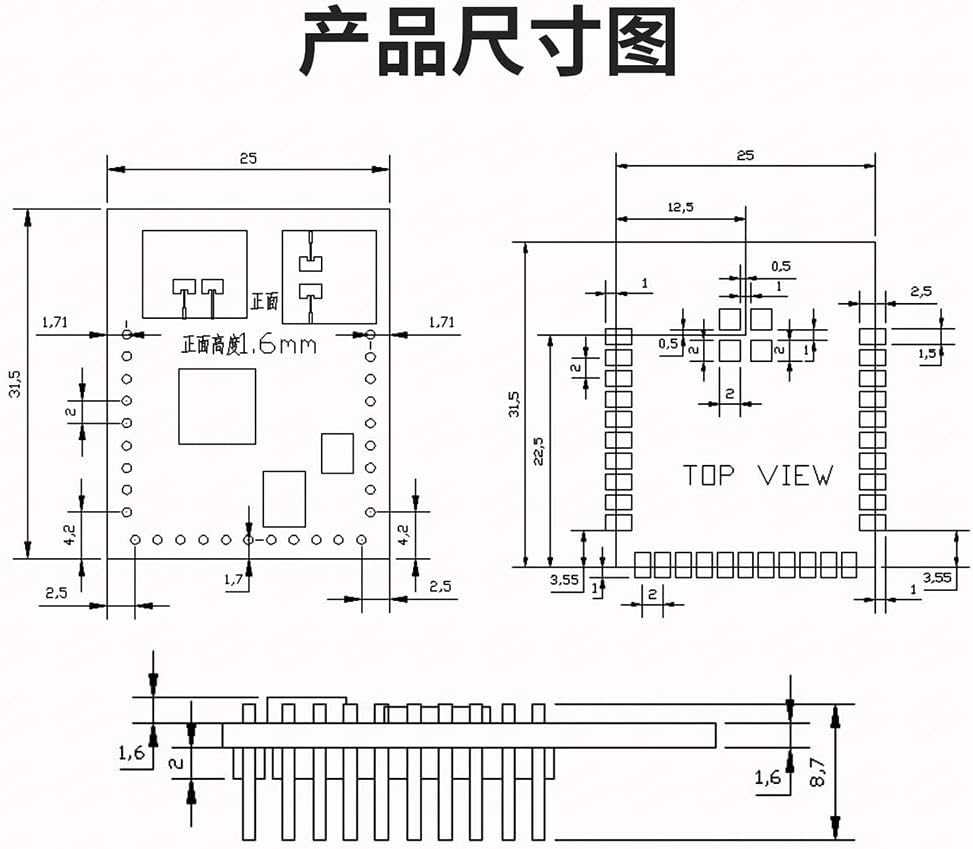

• Power supply requirement: 3.3V (Typ.). Dimensions:31.5 x 25 x 8.7mm. Operating temperature:-20°C～+85°C. Storage temperature:-40°C~ +85°C.
