ISMM1468 Professional 4 AXIS CNC Pendant with 100 MPG Control JOG encoder Handheld pulse generator CNC 4 Axis MPG Pendant Handwheel Emergency Stop

1. Electrical specifications A). Output wave: Square wave B). Output signals: A, B, (Line driver output A, A, B, B phase) C). Current consumption: ≤100mA D). Response Frequency: 0~20KHz E). Output phase difference: 90* F). Supply voltage: 5V DC G). Signal leve: LVH ≥ 85 % Vcc, VL ≤0.3V H). Number of pulses: 100 I). Output circuit:Line driver 2. Mechanical specifications: A). Signal position: 4 kind B). Speed without sealing: 500rmp C). Starting torque without sealing: ≤1.0x 10-2Nm (+25*C) D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ F). Working life: MTBF≥10000h (+25*C, 2000rpm)

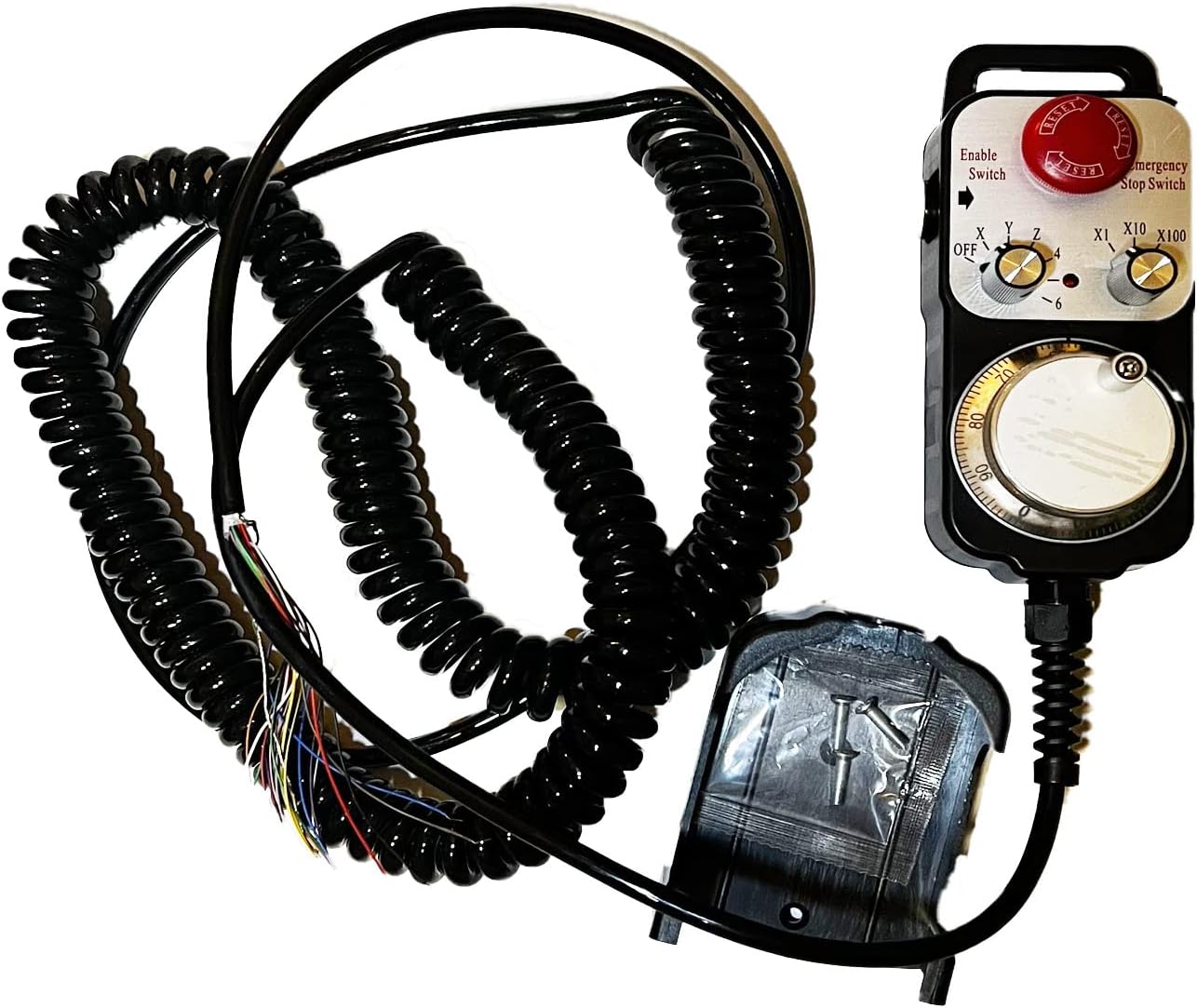

• 1.x1, x10, x100 switch; 2.X,Y,Z,4th axis selector switch;3.LED indicator;4.With Emergency stop
• 5.High quality professional chassis 6.6ft extendable high quality shielded cable cord 7.Magnetic base holder can place anywhere on the machine steel surface 8.Required 5V+, 150mA, power for MPG 9.Phase output is A ,/A and B,/B;
• 10.TTL output, drive capability +-20mA;
• 11.Support CNC system:Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.
• 12.Wiring:User can wire this unit to the CNC system with easy.
