BlueStars 12VDC Max Transient 300A Solenoid Relay 4-Terminal - Compatible with Automotive Marine Boat Winch Electric Golf Cart Camper - Durable Nickel Plating
4.8 (93 items)
Limited Time SaleUntil the end
04
40
00
US$8.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$6.00
Product details
| Management number | 233897231 | Release Date | 2026/06/27 | List Price | US$6.00 | Model Number | 233897231 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

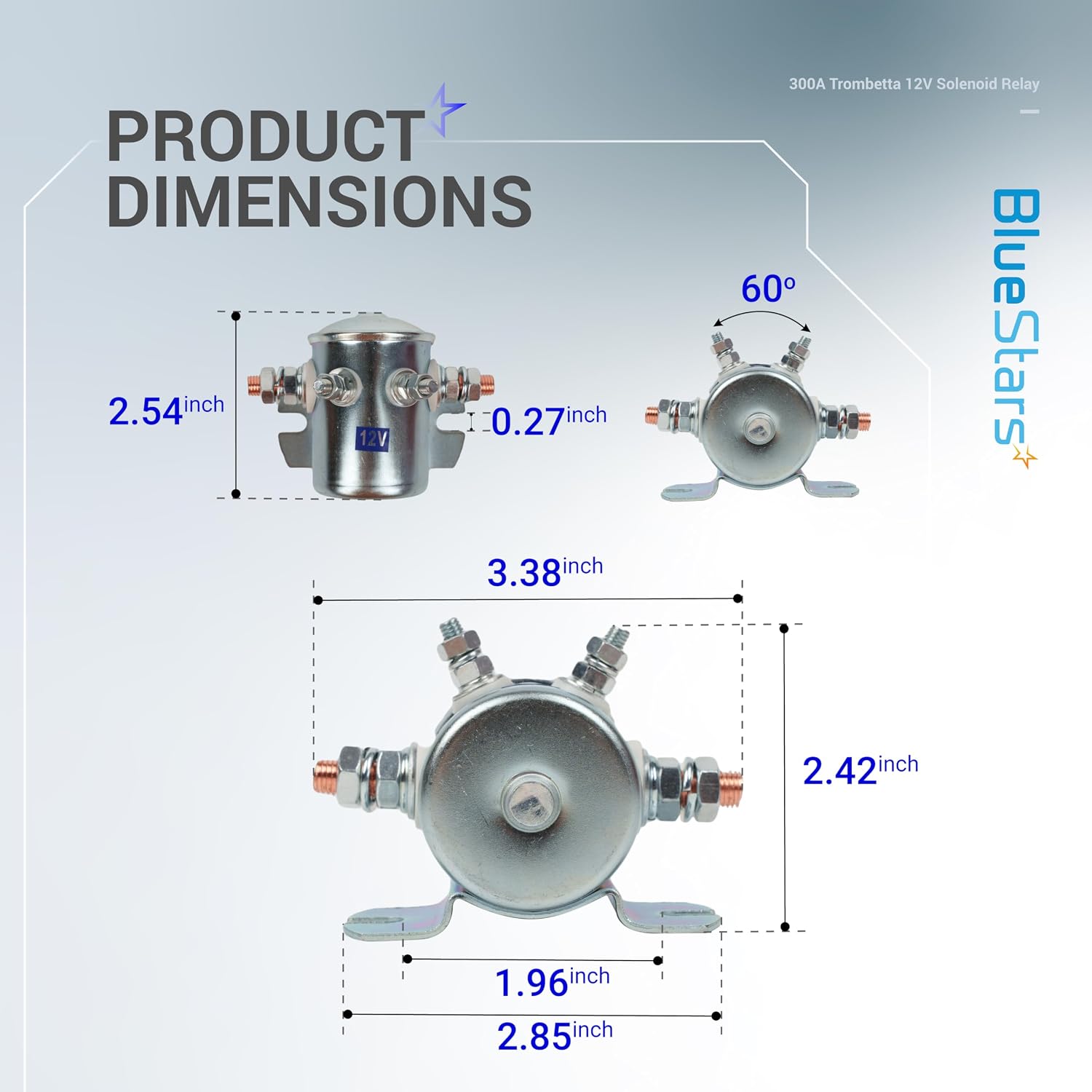

- ๐๐ฆ๐ฉ๐จ๐ซ๐ญ๐๐ง๐ญ ๐๐ฉ๐๐๐ข๐๐ข๐๐๐ญ๐ข๐จ๐ง๐ฌ: Solenoid type: 4 Terminal | Voltage: 12VDC | Continuous Working Current: Below 150A | Max Transient Flash Current: 300A | Resistance: 14ฮฉ | Capacity: 10.2W | Contact Load Terminal: 5/16"-24 Stud standard & long | Contact form: Normally Open (NO) | Bracket Mounting Holes: Holes 5/16" x 19/32" and 2-13/64" on Centers.
- ๐๐๐๐ข๐๐ข๐๐ง๐ญ ๐๐ฅ๐๐๐ญ๐ซ๐จ๐ฆ๐๐ ๐ง๐๐ญ ๐๐ฐ๐ข๐ญ๐๐ก: Our 4-Pole 300A 12V Solenoid will relay electrical power from the battery to the starter. It efficiently reduces power loss and enhances electrical current flows, which helps power up your engine quickly and precisely and protects the battery with the allowed Max Transient Current 300A.
- ๐๐ข๐๐ ๐๐ฉ๐ฉ๐ฅ๐ข๐๐๐ญ๐ข๐จ๐ง: This 300A 12V Solenoid replaces part numbers: #70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547. It is widely used for automotive applications such as marine boats, winches, military vehicles, hydraulic control units, golf carts, caravans, campers, RVs, motorhomes, factory machines, tractors,...
- ?๐ฎ๐ฉ๐๐ซ๐ข๐จ๐ซ ๐๐ฎ๐๐ฅ๐ข๐ญ๐ฒ: BlueStars Solenoid Relay features a heavy-duty Nickel Plated body shell that is firmly enclosed to safeguard internal components, providing excellent wear resistance & waterproof to withstand severe weather, moisture and external factors like oil, dust, chemicals. The inner coil using 180ยฐC copper wire and high-quality load and control terminals maintain a stable current connection and allow better conductivity for long-time use.
- ๐๐ฉ๐๐ซ๐๐ญ๐ข๐จ๐ง ๐๐ซ๐๐๐๐ฎ๐ญ๐ข๐จ๐ง๐ฌ: This Normally Open Solenoid can only work for max 5 minutes under 150A and NEEDS BREAK, otherwise, it will be too hot and burn itself out. | Please prepare a nut driver set in advance and wear work gloves for safety before installation: One side goes to the Battery, the opposite side to the starter, and the top terminal goes to the Ignition Switch or Key Start.
| ASIN | B0D37FY6S5 |
|---|---|
| Model | 300A |
| Wattage | 10.2 watts |
| Brand Name | BlueStars |
| Part Number | 300A |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | BlueStars |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 150 Amps |
| Item Type Name | Solenoid Relay |
| Operating Time | 5 Minutes |
| Operation Mode | Automatic |
| Coil Resistance | 14 Ohms |
| Contact Material | Nickel |
| Included Components | NO |
| Warranty Description | Life time |
