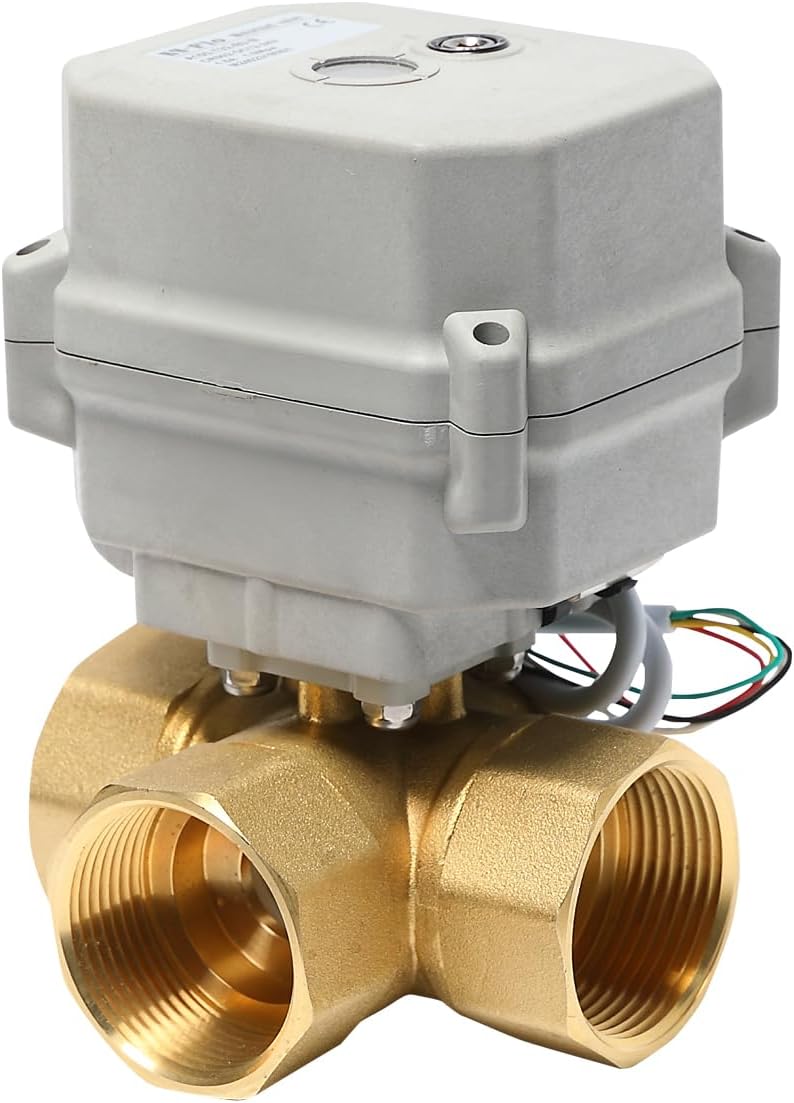

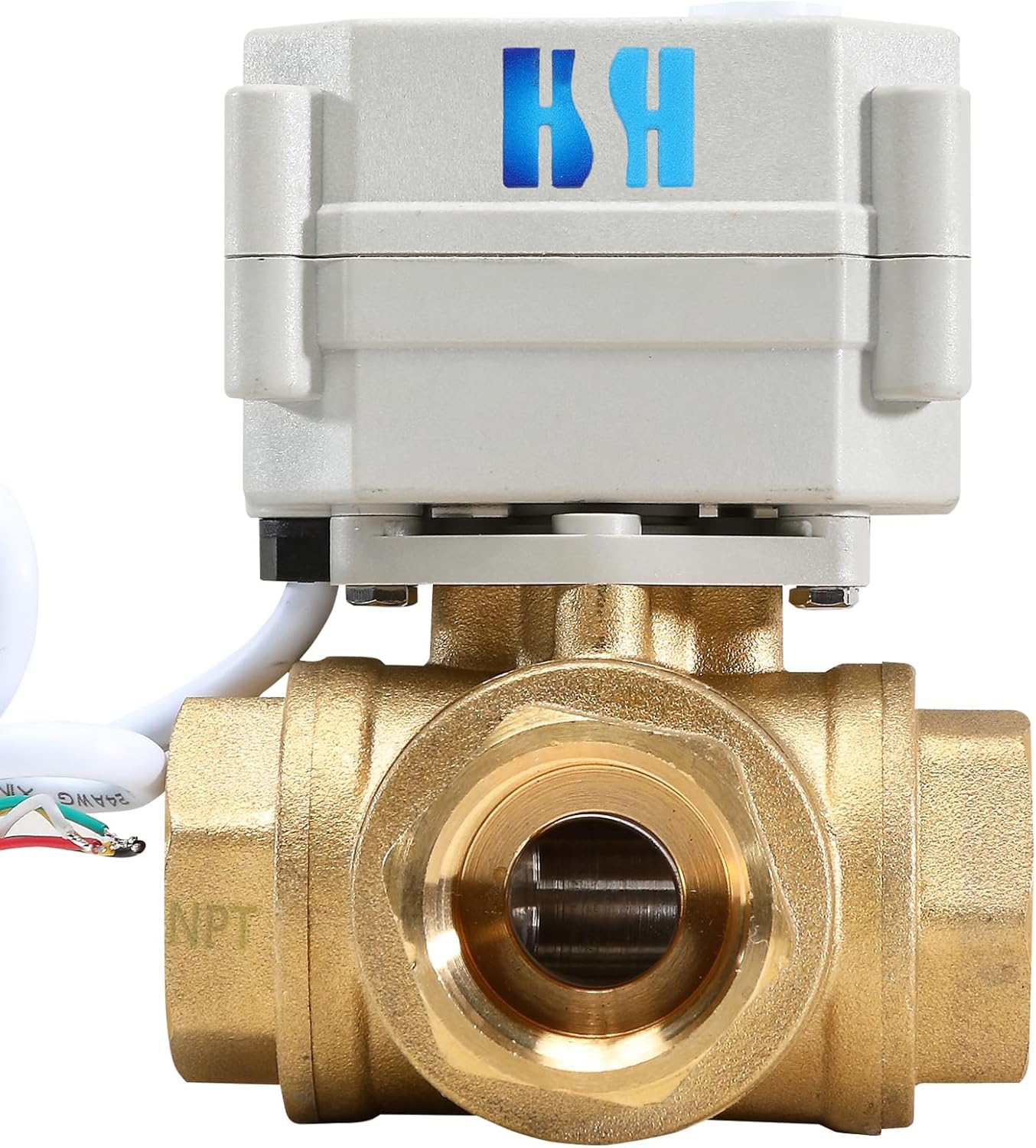

3 Way 1/4" 12VDC 24VAC/DC L Port Auto Return Brass Electrical Position Feedback On/Off Motorized Ball Valve

Technical Parameters:◎Valve Body Diameter: 1/4 inch NPT;◎Valve Body Material: Brass;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR502-B (Electircal Singal Position Feedback Auto Return When Power Off);◎Working Voltage: AC/DC9-24V(Include 12VDC 24VAC 24VDC);◎Working Current: ≤500mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤5s;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 3N.m.;◎Cable Length: 0.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: YES;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);Manual Override Instructions:◎In case of anelectric supply failure, it is possible to operate the actuator manually.◎Power must in off position when start the manual override.◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

• ◎Versatile Compatibility: The HSH-Flo 3 Way 3/8" Brass Electrical Ball Valve Is Compatible With A Wide Range Of Systems, Making It Perfect For HVAC, Water Treatment, And More. Its Brass Body And Engineering Plastics Actuator Ensure Durability And Reliability In Any Environment.
• ◎Efficient Control: With Two-Wire Control And Position Feedback, This Valve Offers Precise Monitoring And Control Of Fluid Or Air Flow. Its Wide Voltage Range (9-24VAC And 9-36VDC Include 12VDC 24VAC 24VDC) Ensures Consistent Performance Across Different Power Supplies.
• ◎Reliable Performance: Built-In Limit Switches And A Capacitor Return Mechanism Ensure Safe And Uninterrupted Operation, Even In The Event Of Power Failure. Plus, The IP67 Protection Class Provides Resistance To Dust And Water Ingress.
• ◎User-Friendly Design: The Included Manual Override Feature Allows For Seamless Operation During Power Outages. Its Intuitive Controls Make It Easy To Use, Providing Peace Of Mind In Critical Situations.
• ◎Diverse Applications: Whether It's For Automatic Control Systems, Air Conditioning, Or Industrial Equipment, This Ball Valve Delivers Reliable Performance And Efficiency, Replacing Solenoid Valves In Applications Where Reliability Is Key.
