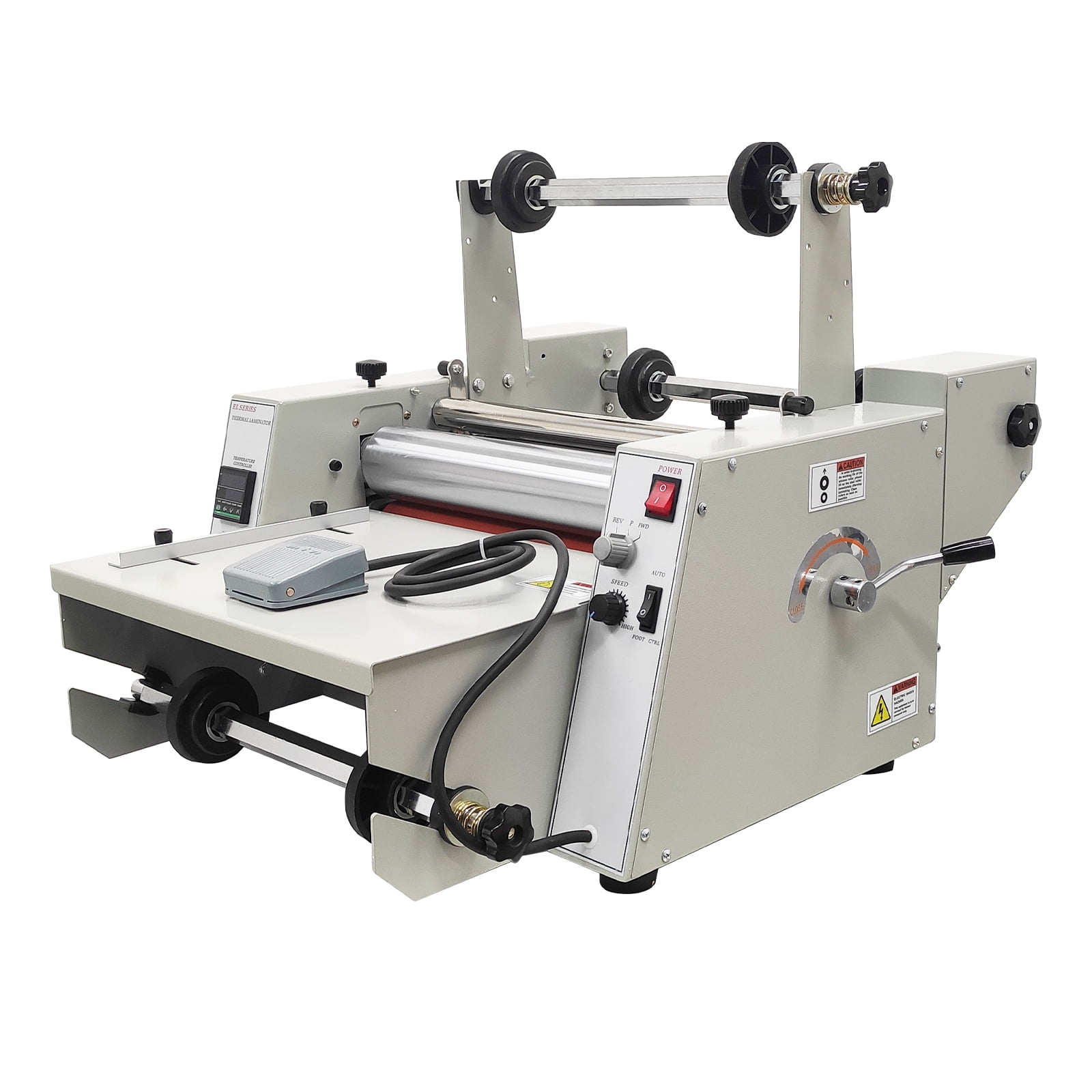

14'' Steel Roller Thermal Laminator Single and Double Side Thermal Laminator with Winding Mechanism

Product Overview: <br>You can use the steel roll laminator for thermal laminating and cold laminating operation. <br>The steel roller thermal laminator is designed for high-quality clear lamination of your prints, presentations, menus, documents, book covers, photos and other visual aids. <br>It can do single-sided or dual-sided laminating with 0-8mm thick films. The high-quality hard chromium plating rollers can evenly distribute the heat so that high-quality lamination can be ensured. <br>It can be operated automatically or controlled through the foot control switch. It is an excellent laminating machine for print shops, graphics studio and professional offices. <br> <br>Product Parameters: <br>1. Heating Method: Steel roller internal heating <br>2. Working Speed: Steplessly Adjustable 3-16ft(1-5M) per minute <br>3. Maximum Laminating Width: 14.17" (360mm) <br>4. Maximum Laminating Thickness: 0-0.31" (8mm) <br>5. Laminating Type: single or dual sides <br>6. Power Supply: 110 V/60Hz (One side 1.1KW，two-sided 2.2KW) <br>7. Laminating Temperature: 60-130 DEG C <br>8. Machine temperature: 0-160 DEG C <br>9. Operation Mode: Automatic or foot switch control <br>10. Warm Up Time: About 1 minutes <br>11. Paper Feeding Mode: Platform <br>13. Paper Discharging Mode: Winding <br>13. Machine Size: 23"x26"x20" (59x67x52cm) <br>14. Net Weight: 95lb (43kg) <br>The laminator supports 3" cores and 1" cores with width 12" or less. <br> <br>Installation Tips: <br>In the installation process of accessories, the supporting plates on the two sides need to be installed on the inner sides of the control platforms on the two sides through screws, and the screws need to penetrate through the supporting plates to be fixed to the control platforms. <br> <br>Item included(122150): <br>110V Steel Roller Thermal Laminator With Winding Mechanism

• The laminator supports 3'' cores and 1'' cores with width 12'' or less. The thermal laminator is of a metal structure and is suitable for commercial and professional places.

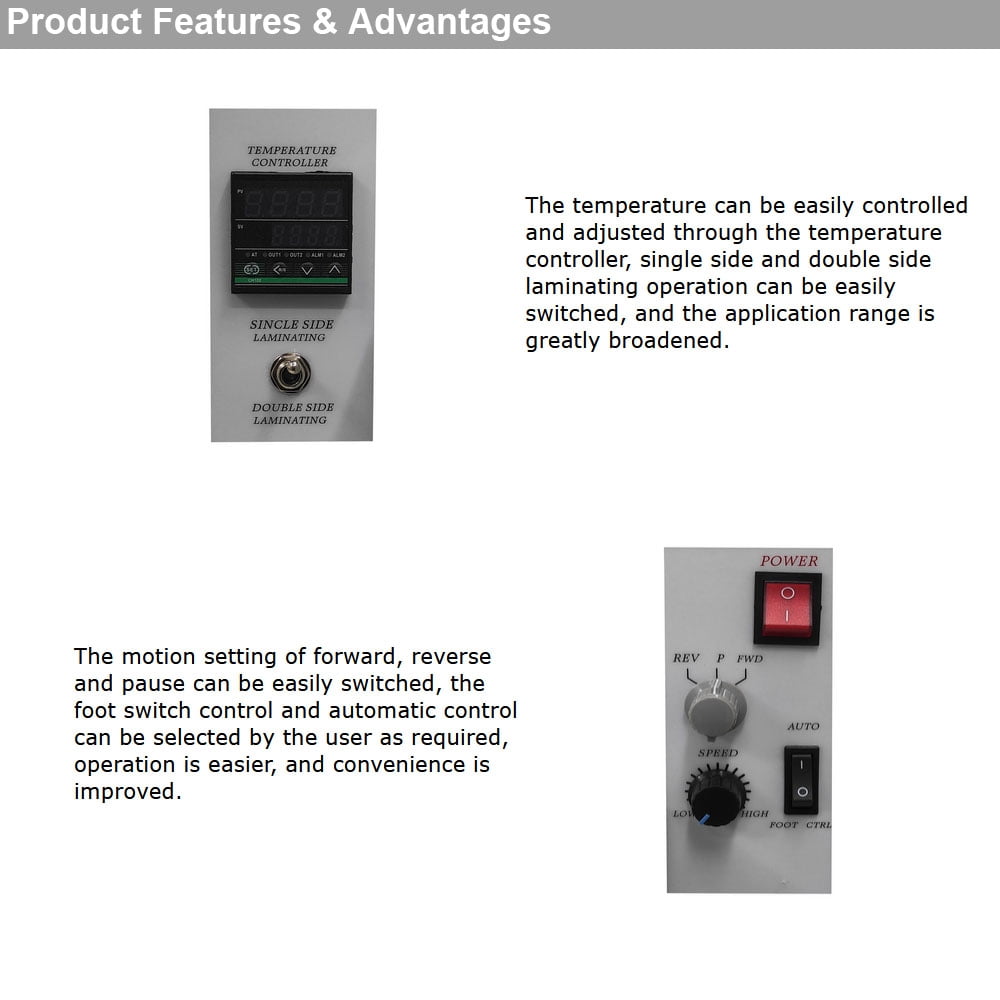

• The top and bottom heating rollers can be controlled separately to allow single-sided or dual-sided lamination so that the application field can be greatly broadened.
• The working speed can be steplessly adjusted, the user can control the working process by himself according to the actual demand, and the humanized design is achieved.

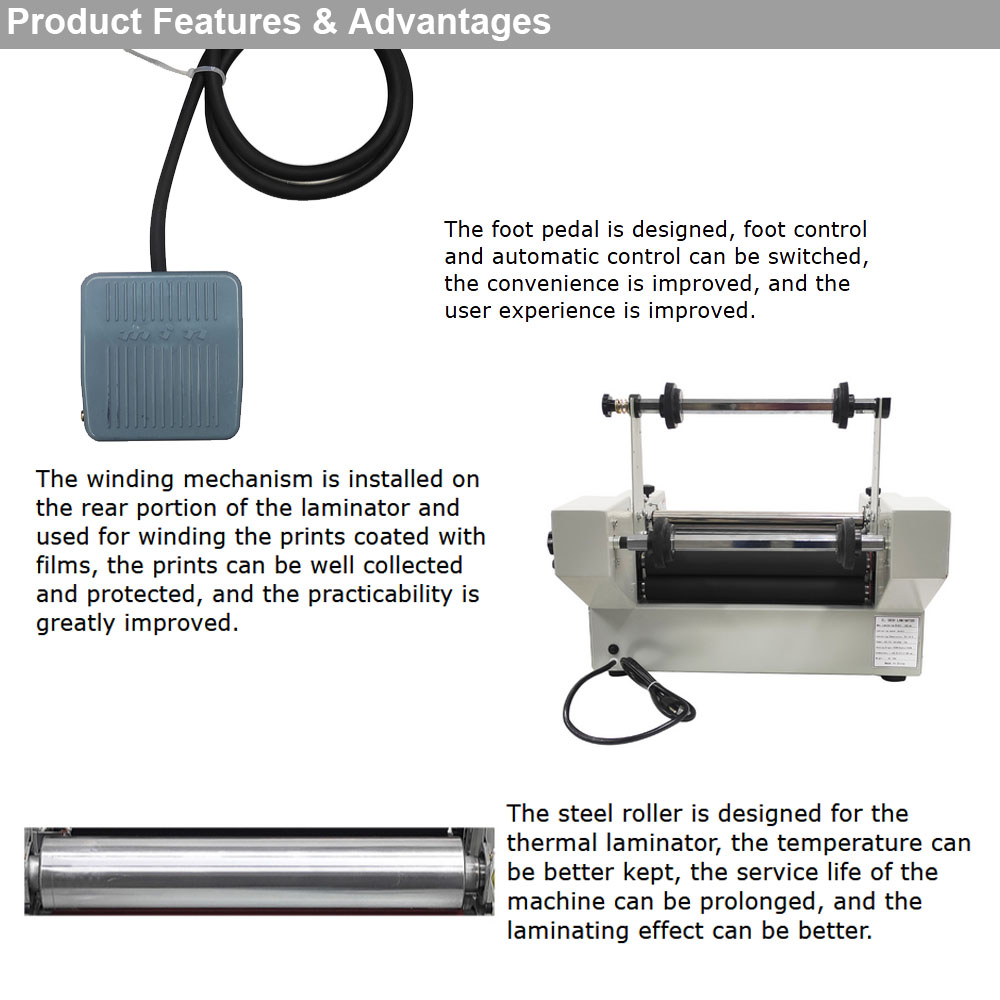

• A foot pedal is designed, foot control and automatic control can be switched, the convenience is improved, and the user experience is improved.
• The winding mechanism is arranged on the rear portion of the laminator and used for winding the prints coated with films, the prints can be well collected and protected, and the practicability is greatly improved.
